Programerbar Tonegenerator 0-12MHz type 2

75,00 DKK

(inkl. moms)

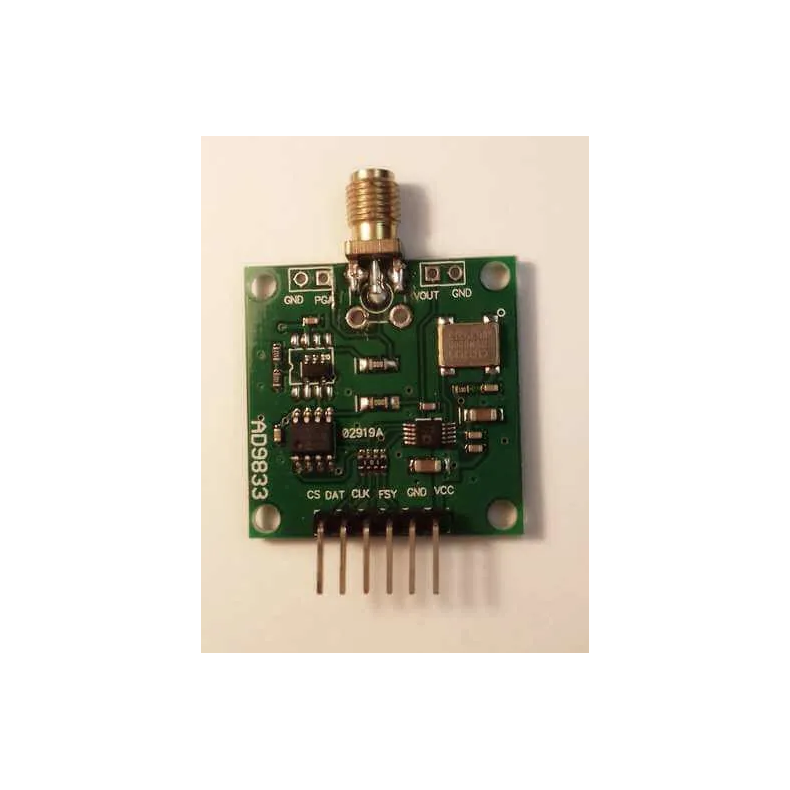

AD9833 DDS Module
Mål: 32x35 mm
Modulet har indbygget output buffer og digital potentiometer (SPI)
Se diagram og eksempler under downloads

Model/Varenr.: 0020/0359

Lagerstatus: 10 stk. på lager

stk.

Beskrivelse

Digitally programmable frequency and phase
12.65 mW power consumption at 3 V
0 MHz to 12.5 MHz output frequency range
28-bit resolution: 0.1 Hz at 25 MHz reference clock
Sinusoidal, triangular, and square wave outputs
2.3 V to 5.5 V power supply
No external components required
3-wire SPI interface
Extended temperature range: −40°C to +105°C
Power-down option
