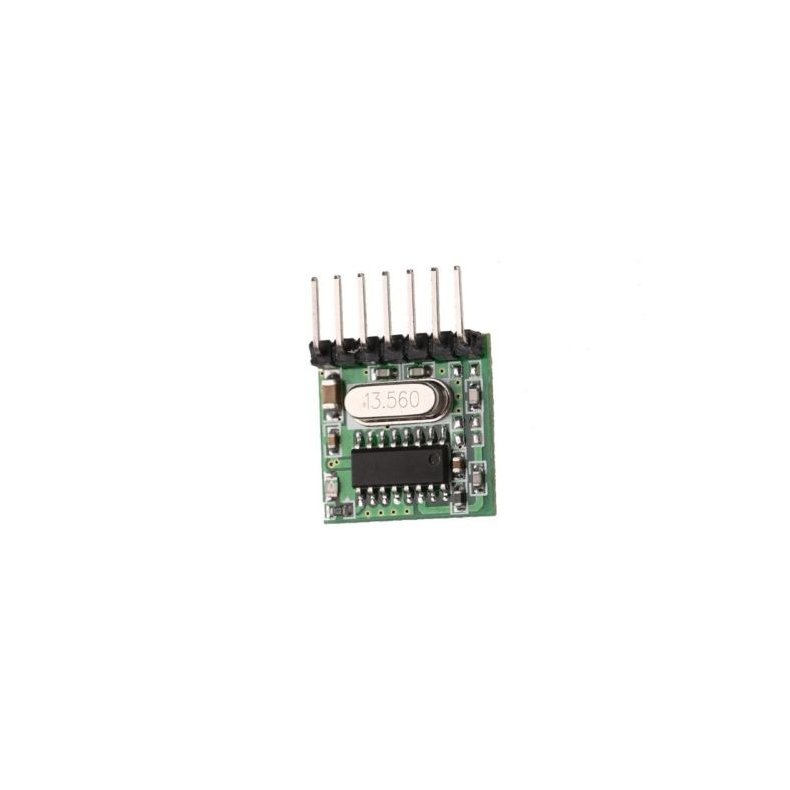

433Mhz sender EV1527 parring

35,00 DKK

(inkl. moms)

Til sikker fjernbetjening. Fire kanaler.

Model/Varenr.: 0015/2374

Lagerstatus: 15 stk. på lager

stk.

Beskrivelse

How to match the transmitter and receiver

1. Delete existing data: Press learning button(on the receiver) 8 times. Response: LED flashes 7 times.

2. Learning remote code: press learning button(on the receiver) once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.

3. Test: after the above operation , the receiver board can be controlled by the remote control.
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.

Button usage (sets mode and starts pairing process):
Press once: Inching mode (Momentary Mode)
Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)

Data

Specifications:
Item Type: Wireless RF Remote Control Transmitter Module (1527 Encoding )
Model: TX118SA-4
Transmitting power: 11dbm
Distance: 30-100m
Emission current: 10MA
Rate of fire: maximum 10KB / S
Transmit deviation: +/- 7. 5KHZ / narrow-band emission
Modulation: ASK
Operating Voltage: DC 3V-24V
Encoding: EV1527 1527 Learning code
