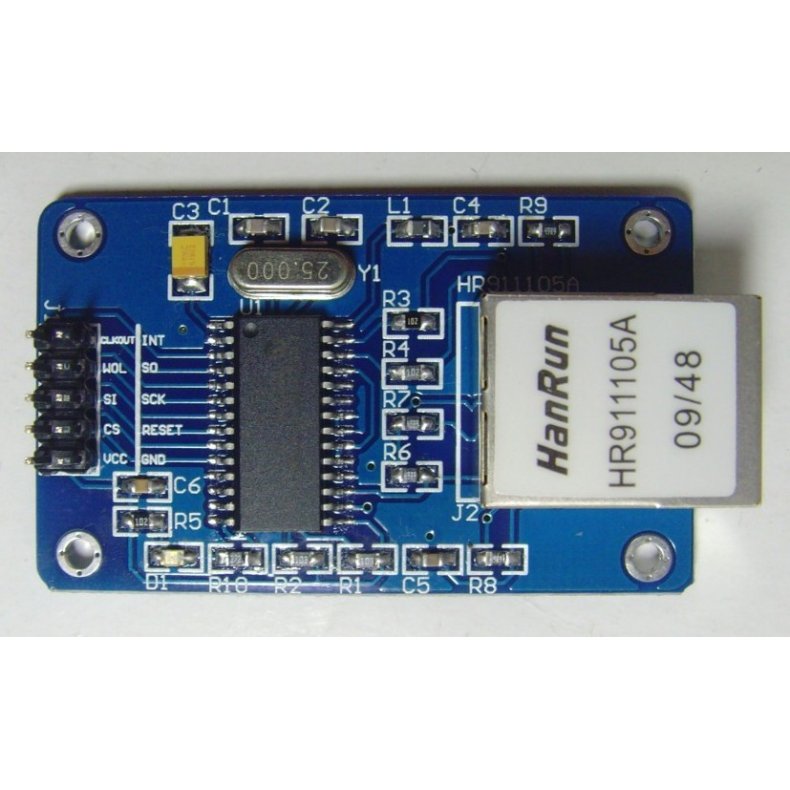

Ethernet modul 3.3v ENC28J60

40,00 DKK

(inkl. moms)

Ethernet modul Chip ENC28J60 25MHZ crystal SPI interface Kan anvendes til arduino
Se projekt på : http://softgeniedoc.dk/contents/projects/ethernetmodul/ethernetModule.html

Model/Varenr.: 0030/0269

Lagerstatus: 4 stk. på lager

stk.

Beskrivelse

Microchip ENC28J60 Ethernet Chip supporting Microchip’s TCP/IP protocol stack, with IPv4, UDP, TCP, DHCP, ICMP, FTP, and HTTP support
· Compatible with all controllers having an SPI interface, SPI interface takes only few pins to add Ethernet interface to your microcontroller project
· Suitable for 3.3V Interface
· LAN connector with build in transformer

8 pin standard interface connector with spacing of 0.1” (2.54 mm) row pins
· IEEE 802.3 Compatible with Integrated MAC and 10Base-T PHY
· Fully Compatible with 10/100/1000Base-T Networks
· Supports One 10Base-T Port with Automatic Polarity Detection and Correction
· Supports Full and Half-Duplex modes
· Programmable Automatic Retransmit on Collision
· Programmable Padding and CRC Generation
· Programmable SPI Interface with Clock Speeds Up to 20 MHz
