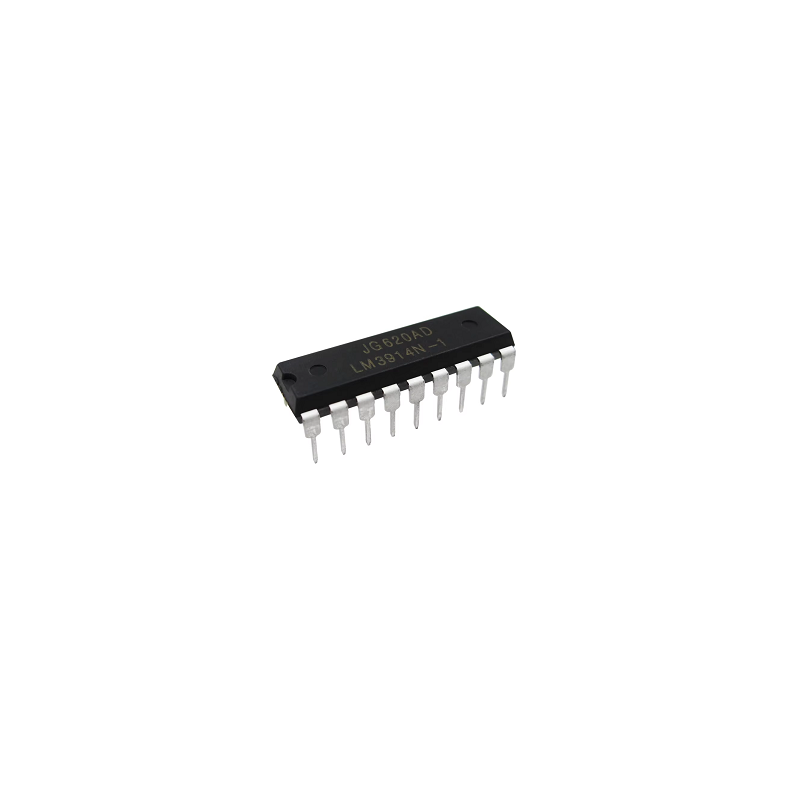

LM3914 linear Dot/Bar Display Driver

10,00 DKK

(inkl. moms)

Linear LED Bar, Display Driver, 3dB/Step, 10 Segment

Model/Varenr.: YXZ870

Lagerstatus: 15 stk. på lager

stk.

Bar or dot display mode externally selectable by user and expandable to displays of 90 db
Internal voltage reference from 1.2V to 12V and operates with single supply of 3V to 25V
Inputs operate down to ground and output current programmable from 1 ma to 30 ma
Input withstands 35V without damage or false outputs and outputs are current regulated, open collectors

Titel	Type	Størrelse	Download
LM3914N-1.pdf	PDF	796.06KB	Download
