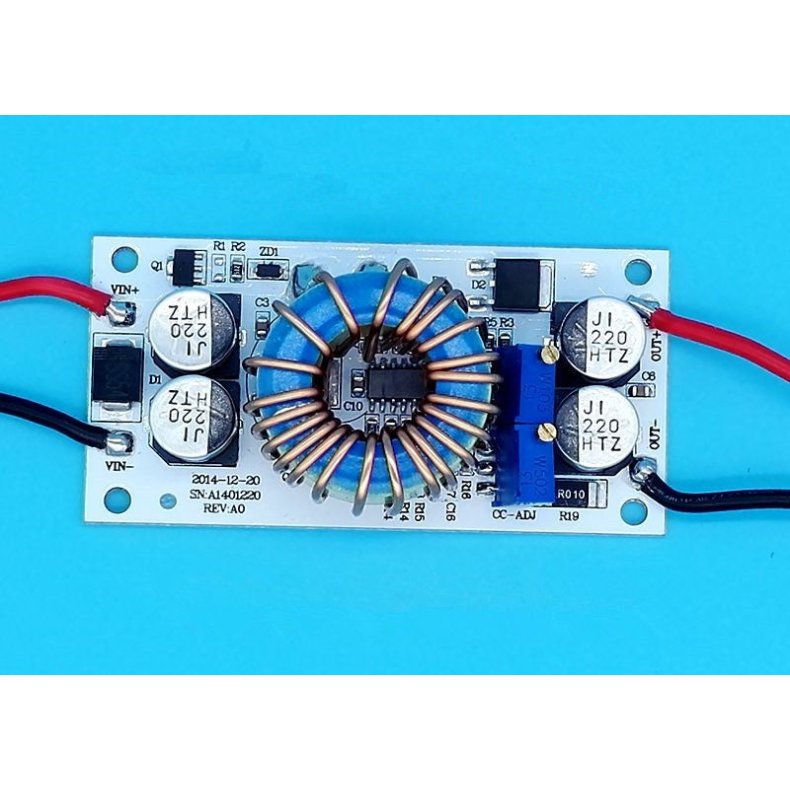

Step Up module adjustable 10-50V  240 watt

Step Up module adjustable 10-50V 240 watt

120,00 DKK

(inkl. moms)

Constant Current power supply 240W 10A
input voltage: DC10V-40V
Input current: 6A (MAX)
Output voltage: 10-50V continuously adjustable
Constant range: 0.2-6A
Operating frequency: 150KHz
Conversion efficiency: 92%~96%
Overcurrent protection: yes
Module size: Length 70mm width 36mm height 13mm

Model/Varenr.: 05/210
Lagerstatus: 1 stk. på lager
stk.

Output voltage / current adjustment method:

      1, adjust RV1 potentiometer, according to your battery or LED, the output voltage is set to your desired voltage value. such as 10 LED string voltage regulator to 37V.

       2, adjust RV2 potentiometer clockwise 30 laps, the output current is set to a minimum, connected LED, adjust RV2 potentiometer to the desired current. For battery charging, before connect  to output,the battery must be fully discharged, then adjust RV2 to set the current. Please do not adjust the current short-circuited manner, the circuit structure of the booster module can not be short-circuited by way of transfer.
